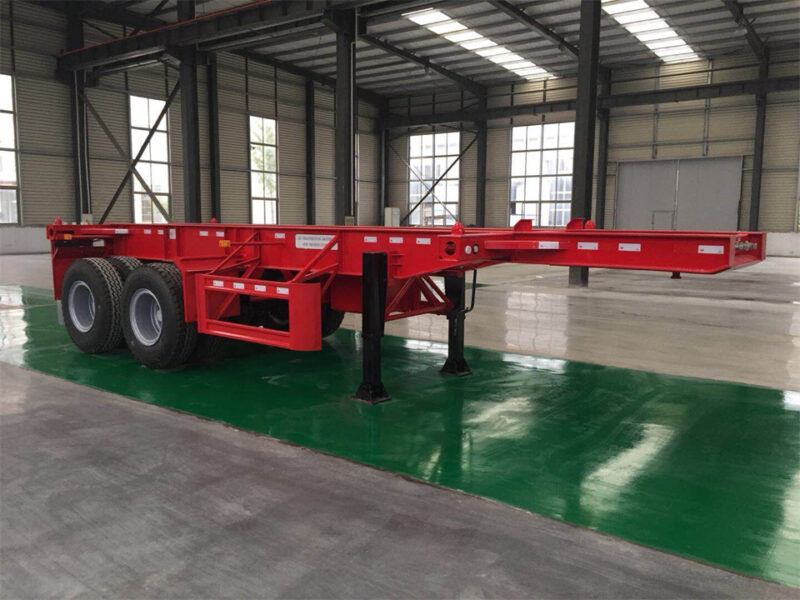

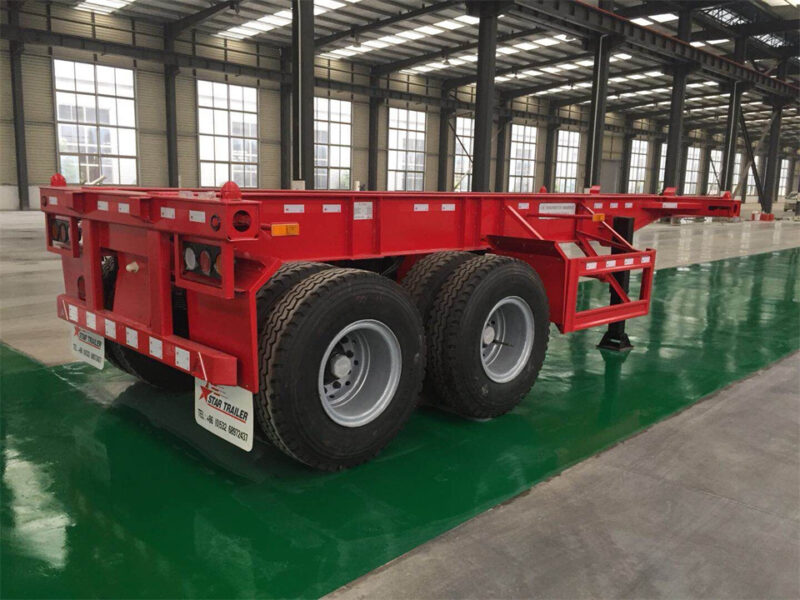

2axle chassis trailer
SKELETON TRAILER SPECIFICATIONS Payload 30-70T Dimension 1250mm×2500mm×1550mm Main Beam Top 14mm, Middle 8mm, Bottom 1
Contact Now
Product details
| SKELETON TRAILER SPECIFICATIONS | |
|---|---|
| Payload | 30-70T |
| Dimension | 1250mm×2500mm×1550mm |
| Main Beam |
Top 14mm, Middle 8mm, Bottom 16mm, height 500mm Bottom plate: 16mm, Material: Q345B steel |
| Axle | 3pcs axles, 13tons BPW / FUWA brand |
| Twist Lock | 4,8,12 sets (lifting or screw type) |
| Tires | 12 units, 12.00R22.5 or 315/80R22.5 |
| Suspension | Mechanical suspension |
| Landing Gear | Jost brand D200T or Chinese brand 28tons(double-speed), Jost brand 28T lifting capacity |
| Leaf Spring | 90mm(W)*16mm(T)*10 Layer |
| King Pin | Jost brand 2.00 or 3.5 inch |
| Rim | 9.00-22.5 or 9.75-22.5 |
| ABS | Optional |
| Light | LED light |
| Voltage | 24V |
| Socket | 7-pin Socket |
| Color | Optional |
| Toolbox |
Customizable |
